Complete Milwaukee 2505-22 Drill Specs (USA Version)
300
in-lbs
Peak torque
1600
RPM
HIGH (no-load)
Our Score: 96%
| Performance | |
|---|---|
| Motor type | POWERSTATE Brushless |
| Drill-Specific Specs | |
| Peak Torque | 300 In-lbs |
| Weight kg with package | Click here |
| Batteries included | 2 |
| Chuck size | 0.375in. |
| Max steel hole diameter | 0.375 |
| Max wood hole diameter | 1.25 |
| High no-load RPM | 1600 (They mention 0 to 1600 RPM) |
| Low no-load RPM | 400 (They mention 0 to 400 RPM) |
| Battery Specs | |
| Battery | Lithium-Ion (M12 REDLITHIUM CP2.0 48-11-2420) |
| Battery Power | 2000mAh |
| Batteries included | 2 |
| Charger details | M12 (48-59-2401) |
| Physical Specs | |
| Width (inches) | 1.8 |
| Height (inches) | 7 |
| Depth (inches) | 5.12 |
| Width (mm) | 45.7 |
| Height (mm) | 177.8 |
| Depth (mm) | 130 |
| Other Specs & Features | |
| SERIES | M12 Fuel |

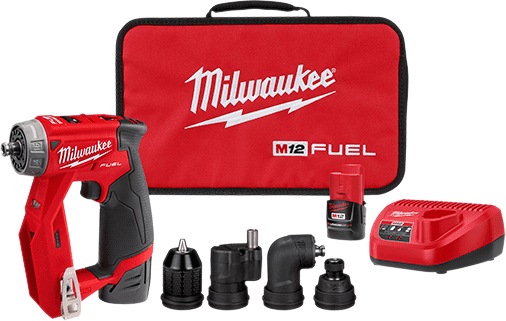

| Included Accessories | Four different heads (3/8-inch Chuck, Offset Driver, 1/4-inch Hex, and Right Angle) to achieve 16 different combinations , Belt clip (attached), Compartmentalized contractor bag |
| Available colors | Red-Black |
| Warranty | 5 years |
| Special | REDLINK Plus Intelligence (for protection from overheating and overloading) |
| Manufacture product ID | 2505-22 |
| Warranty | 5 years |
| Special | REDLINK Plus Intelligence (for protection from overheating and overloading) |
| Release year | 2019 |
| Release month | 10 |
Description:
Also called Milwaukee M12 Fuel Installation Drill Driver, Milwaukee 2505-20 (Tool Only).
