49 Important Pioneer WYS024-17 A/C Specs (USA Version)
24000
BTU
cooling
25000
BTU
heating
33
db
Min. Noise
Our Score: 88%
| Release month | 06 |
| Release quarter | 02 |
| Basics | |
|---|---|
| Main category | Split air conditioner |
| SERIES | WYS |
| Number of zones | 1 |
| Weight lbs with package | 225 |
| Height (inches) | 13 |
| Width x Height | 42.5-inch wide x 13-inch high |
| Depth | 9 inches |
| Width (mm) | 1079.5 |
| Height (mm) | 330.2 |
| Depth (mm) | 228.6 |
| Cooling system | DC inverter compressor with heat pump |
| Warranty | 2 years (5 for compressor) |
| Energy Efficiency | |
| Energy efficiency ratio (EER) | 9.5 |
| Seasonal Energy efficiency ratio (SEER) | 17 |
| Heating seasonal performance factor (HSPF) | 9.5 (Amazon also says 10) |
| Refrigerant charge (oz) | 63.5 |
| Functions | |
| Air deflection | ? (automatic swing air discharge louvers) |
| Dehumidifier Specs | |
| Dehumidifaction (Pints) | 120 |
| Dehumidifaction (L) | 56.78 |
| Dehumidification (oz/Day) | 1920.00 |
| Performance | |
| Cool BTU rating | 24000 BTU |
| Heat BTU rating | 25000 |
| Compressor type | Rotary |
| Maximum temperature (C) | 32 |
| Minimum temperature (C) | 17 |
| Estimated cool area | 850 Square feet. (600 to 850) |
| Minimum temperature | 62 °F (17°C) |
| Maximum temperature | 90 °F (32°C) |
| Air flow | 589CFM (16.68 cubic metre/min.) (589/459/353) |
| Amps | 11.2 |
| Voltage | 230 |
| Watts | 2525 W |
| Max. motor RPM | 1100 RPM |
| Min. motor RPM | 700 RPM |
| Min. noise level | 33 |
| Max. noise level | 45.5 |
| Convenience | |
| Remote control |  (infrared RC with LCD readout) |
| Other Specs & Features | |
| Certifications | ETL, UL-1995 |
| Optional Accessories | Mounting bracket for outdoor component, Smart controller kit, Decorative PVC line cover kit |
| Release year | 2016 |
| Air filter details | Permanent washable air filters, Enhanced filter options |
| Refrigerant | R410a |

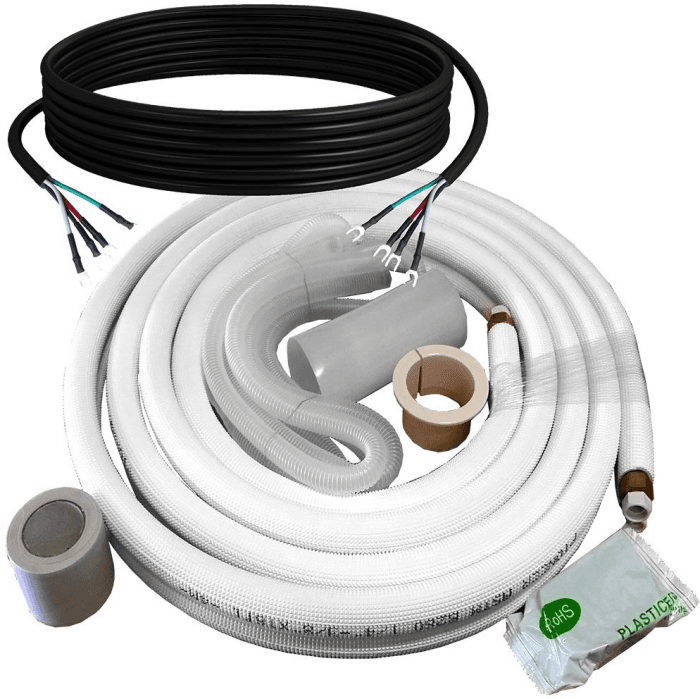

| Special Included Accessories | 16-inch installation kit |
| Available colors | White |
| Display Type | LCD backlit, LED (dimmable) |
| Special | Outdoor dimensiosn 33. x 14.5 x 28 inches |
| Manufacture product ID | WYS024GMFI17RL |
Description:
Also called Pioneer WYS024GMFI17RL, Pioneer 24000 BTU Ductless Air Conditioner with Heat, Pioneer 24000 BTU Split AC with Heat.
