Detailed Delta 18-900L Drill Specs

3000
RPM
HIGH (no-load)
Avg. rating:
(76%) (212 reviews over 2 sources)

Performance
Speed settings16 (Using an auto-tensioning belt drive system for quick speed changes)
Motor voltage120 V
Max. noise level3.75 x 3.75 x 0.75

Drill-Specific Specs
Chuck TypeJacobs 3
Max wood hole diameter0.625
High no-load RPM3000
Low no-load RPM170
Physical Specs
Weight lbs with package261
Width (inches)20
Height (inches)70
Depth (inches)28
Width (mm)508
Height (mm)1778
Depth (mm)711.2
Vertical work area (inches)22.25 (to table... 42.5 capacity from chuck to base)
Work area swing18 (Presumably, since they call it an "18 in. drill press")
Worktable width (inches)20
Worktable depth (inches)14
Beveling angle90 (Left to right), 48 (Forward)

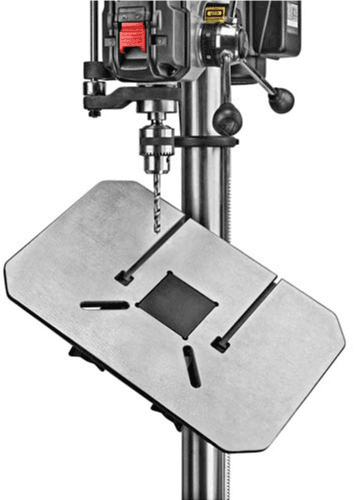

Worktable details"Oversized" 20 x 14, Removable center insert (3.75 x 3.75 x 0.75)
Spindle travel (inches)6
Taper detailsMorse 2
Slotted tableT-slots
Laser centering systemTwinlaser (Red crosshair)
Depth gauge (Depth scale)
Other Specs & Features
Available colorsSilver
Warranty5 years
Special52-millimeter Quill diameter, 80-millimeter Column diameter
UPC code885911131247
Indicator lights"Flexible"
Indicator lights"Flexible"
Warranty5 years
Special52-millimeter Quill diameter, 80-millimeter Column diameter
UPC code885911131247
Release year2010
Release month8
Release day4
Electric safety certificationCSA-listed

Description:

Boasting of an "oversized" worktable with a removable center insert, the guiding-laser-equipped Delta 18-900L drill press also flaunts a rather-high-end 16 speed settings.
