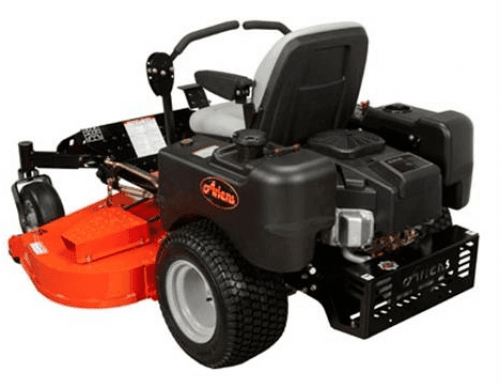

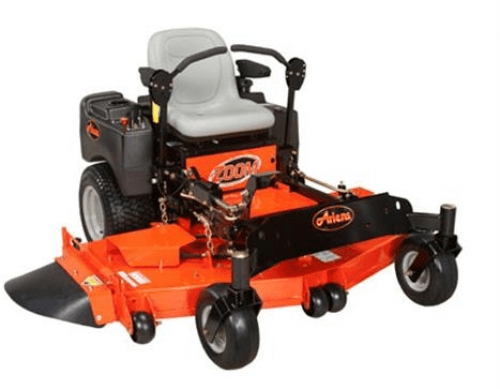

Detailed Ariens Max Zoom 60 Mower Specs

cutting width
Avg. rating:
(97%) (3 reviews over 2 sources)

You Should Also Check Out: Top 10 Best Zero-turn Mowers 2020
Under The Hood
Engine MakeKOHLER 7000 Series Pro
Fuel Tank Capacity (quarts)24
Fuel Tank Capacity (litres)22.71
Oli filterHydrolic
Engine power Kw33.5
Horsepower25 HP

Mowing Features
Cutting width (inches)60
Cutting height adjustment1"-5"
Cut Height Increments (inches)0.5
Mower Deck Material10 gauge with 0.25-inch spindle reinforcement
Drive Details
Turning Radius0
Drive system typeHydro-Gear? ZT-3100 transaxles
Front Tires13 x 5-6
Rear Tires20 x 10-10
Transmission TypeHydrostatic
Other Specs & Features
User manualClick here
Starter typeElectric
Fuel Tank Capacity6 gal. (Or 22.71L / 24 qts.)
Manufacture product ID991087
Release year15
Release month3
Width (inches)62.8
Height (inches)42
Width (mm)1595.1
Height (mm)1066.8
General Specs
Main categoryZero-turn lawn mower
Warranty3 years (Consumer), 1 (Commercial)


Also known as Ariens 991087.
