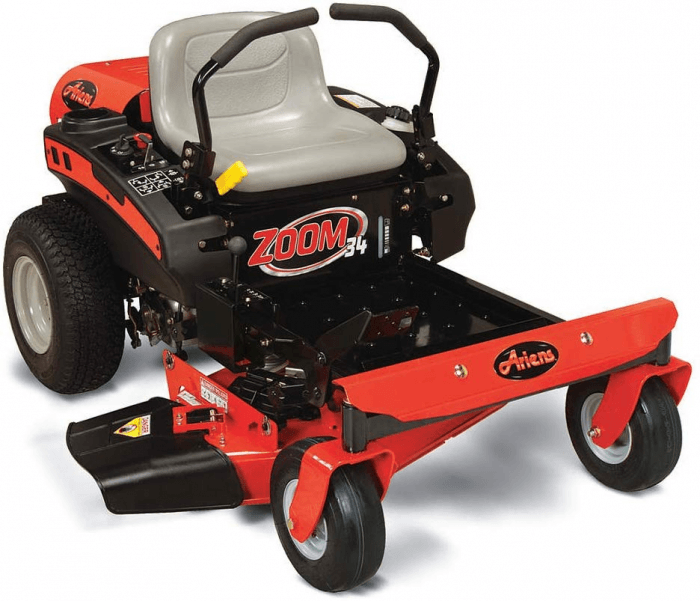

Complete Ariens Zoom 34 Mower Specs

34
-inch
cutting width
Under The Hood
Engine MakeKohler
Engine ModelKohler 6600 Series
Engine TypeV-Twin
Engine ignitionElectric
Cylinder displacement660 cc
Engine fuelUnleaded regular gasoline
Fuel Tank Capacity (quarts)8
Fuel Tank Capacity (litres)7.57
Battery12V Maintenance Free 190 CCA
Engine power Kw25.5
Blade-tip speed17500
CARB compliant
Horsepower19 HP

Mowing Features
Cutting width (inches)34
Cutting deck typeStamped metal
Cutting methodsSide ejection
Cutting deck materialSteel
Deck thickness gauge12
Deck lifting system4-point deck hanging system
Blade engagementElectric Warner
Blades2
Mower Cut Height (inches)4.5
Mower Cut Height Min (inches)1.5
Cut Height Increments count7
Cutting height adjustmentFoot-operated
Mower Deck MaterialSteel
Mower Drive SystemBelt
Spindle BushingsSealed Bearings
Seat Details
Seat spring
Drive Details
Steering typeZero-turn
Drive system typeHydrostatic drive
Front Tires11 x 4-5
Rear Tires18 x 6.5-8
Front Axle materialSteel
Drive Shaft1 axle shaft
Transmission TypeHydrostatic drive
Transmission manufacturerHydro-Gear
Transmission modelEZT Transaxles
Other Specs & Features
Optional AccessoriesArm Rest Kit, Trailer Hitch, Zoom 34 Non-Powered 2-Bucket Bagger, FlexTend Shoulder Support System, Ariens 8" Wheel Covers, 34" Grass Mulching Kit, Poly Roller, Aerator, Dethatcher, Sprayer, Spreader, Wheel Covers, Headlight Kit, Seat Cover, Mower cover
User manualClick here
Claimed qualitiesComfortable, Compact design, Exceptional cut, Long-lasting performance, Intuitive foot-operated deck lift
Starter typeElectric
Fuel Tank Capacity2.0 gal. (Or 7.57L / 8 qts.)
Manufacture product ID915211
AlphaMetrics
Release year2018
Width (inches)42 (with chute)
Height (inches)37
Depth (inches)64
Width (mm)1066.8
Height (mm)939.8
Depth (mm)1625.6
General Specs
Main categoryZero-turn lawn mower
SERIESZoom
Weight425lbs.
Warranty3 years (5 for the deck and frame)

Description:

Also known as: Ariens Zoom 34 Zero Turn Mower, Ariens Zero Turn 34 Inch, Ariens 915131.

General Ariens Zoom 34 Information
