Detailed Hyundai HYM510SPE Mower Specs

cutting width

Are You Sure It Is Your Best Choice? Check These:

Under The Hood
Engine MakeHyundai
Engine ModelIC175VE
Engine Type4-stroke OHV
Engine cylinders1
Cylinder displacement196 cc
Engine fuelUnleaded gas
Fuel Tank Capacity (quarts)1
Fuel Tank Capacity (litres)1
Oil capacity (ounces)20.3
Engine power Kw4.2
Horsepower3.1 HP

Mowing Features
Cutting width (inches)20
Cutting methodsRear discharge, side discharge, mulching, collect
Deck Wash PortHose connector
Mower Cut Height (inches)2.95
Mower Cut Height Min (inches)0.98
Cut Height Increments count6
Cutting height adjustmentSingle lever
Mower Deck MaterialSteel
Drive Details
Drive system typeSelf-propelled (rear wheel drive)
Forward Speeds4
Front Wheel Diameter8 inches
Rear Wheel Diameter11 inches
Other Specs & Features
Special Included AccessoriesSide discharge chute, 70L Polyester Grass Bag, Battery charger
Optional AccessoriesService kit, Spare blade, Wing turbo blade
Button typePush button
Safety featuresOPC (operator presence control)
Handle material? (soft grip)

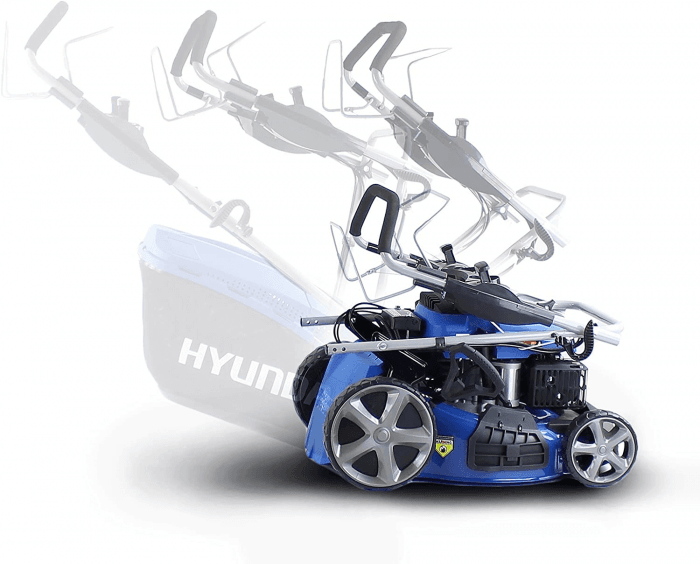

Handle TypeFoldable
Claimed qualitiesCompact design for storage, Easy starting, Ideal for medium to large size lawns and gardens, Quick and easy tool-free assembly
Starter typeElectric (with recoil as back up)
Fuel Tank Capacity0.26 gal. (Or 1L / 1 qts.)
Release year2018
Release month09
Width (inches)21.7
Height (inches)41.3
Depth (inches)62.2
Width (mm)550
Height (mm)1050
Depth (mm)1580
General Specs
Main categoryWalk-behind lawn mower
Weight (kilograms)42.5
Weight lbs with package104.5
Warranty3 years (platinum warranty)


Also called Hyundai 51cm 196cc Self-propelled Petrol Lawn Mower, HYM510SPE Hyundai Electric Push Button Start Lawn Mower.
