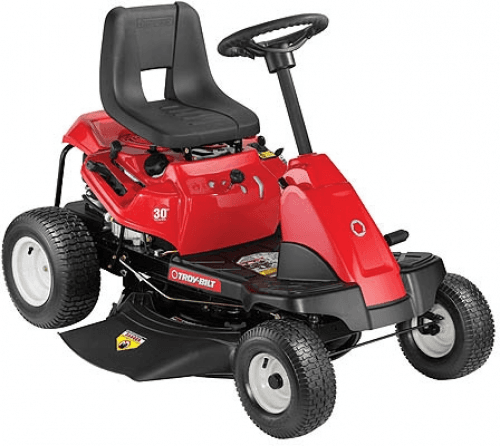

Detailed Troy Bilt TB30 30-inch Mower Specs

cutting width
Top Speed
Avg. rating:
(80%) (755 reviews over 3 sources)

You Should Also Check Out: Top 10 Best Electric Lawn Mowers 2020
General Specs
Main categoryElectric lawn mower
Warranty2 years

Top Forward Speed (mph)4.25
Top Reverse Speed (mph)1.5
Engine power Kw14.1
Horsepower10.5 HP
Release year2012
Release month11
Release day1
Release quarter4
Width (inches)34
Height (inches)26
Width (mm)863.6
Height (mm)660.4
Mowing Features
Cutting width (inches)30
Cutting deck typeStamped
Cutting methodsSide discharge (optional bagger and mulch kit)
Cutting deck materialSteel
Deck thickness gauge14
Blade engagementPTO lever
Mower Cut Height (inches)3.5
Mower Cut Height Min (inches)1.5
Cut Height Increments count5
Cutting height adjustmentNotch (lever-operated)
Lift systemNotch (lever-operated)
Mower Deck MaterialStamped
Mower Drive SystemBelt
Mower Wheels4
Mower Wheel AdjustmentManual
Spindle BushingsAluminum
Under The Hood
Engine MakeBriggs & Stratton
Engine ignitionSwitch
Engine cylinders1
Engine coolingAir
Engine fuelGasoline
Engine air filter typePaper filter
Fuel Tank Capacity (quarts)5
Fuel Tank Capacity (litres)4.92
Engine lubrication typeSplash
Oli filter
Battery voltage12 V
Drive Details
Steering typeStandard
Turning Radius18
Interlock system
Forward Speeds6
Reverse Speeds1
Wheel typePneumatic
Front Tires13 x 5
Rear Tires16 x 6.5
Front Axle materialSteel
Transmission TypeManual
Transmission controlFoot-pedal
Transmission coolingFan-cooled
Other Specs & Features
User manualClick here
Country of assemblyUSA
UPC code043033562701
Starter typeKey start (electric)
Fuel Tank Capacity1.3 gal. (Or 4.92L / 5 qts.)
Manufacture product IDTB30


The TB30 may have just the specs needed for mowing a small lawn, like a 30-inch cutting width, a 10hp motor, a 1.3-gallon fuel tank, a 4.5mph maximum speed, and a 1.5 to 3.5-inch cutting height range. It is also marketed as easy to maneuver with its reverse mowing capability (which is pretty standard, though) and 18-degree turning radius, which is slightly above average for a basic riding mower.

Also called Troy Bilt TB30 R Neighborhood Rider, Troy Bilt 30-inch.
