Detailed Frigidaire FFTH1222R2 A/C Specs
12000
BTU
cooling
10600
BTU
heating
56.5
db
Min. Noise
Our Score: 88%
| Release month | 09 |
| Release quarter | 03 |
| Basics | |
|---|---|
| Main category | Wall air conditioner |
| Weight | 78lbs. |
| Weight lbs with package | 90 |
| Height (inches) | 14.5 |
| Width x Height | 24-inch wide x 14.5-inch high |
| Depth | 20.5 inches |
| Width (mm) | 609.6 |
| Height (mm) | 368.3 |
| Depth (mm) | 520.7 |
| Cooling system | Compressor refrigeration |
| Temperature adjustment type | Digital (numeric) |
| Warranty | 1 year (five years for the sealed system) |
| Energy Efficiency | |
| ENERGY STAR annual cost | 114 |
| Energy efficiency ratio (EER) | 9.5 |
| Performance Certification | AHAM |
| Electric safety certification | UL |
| Energy saver |  |
| Combined Energy efficiency ratio (CEER) | 9.5 |
| Refrigerant charge (oz) | 21.87 |
| Functions | |
| Vent closing | |

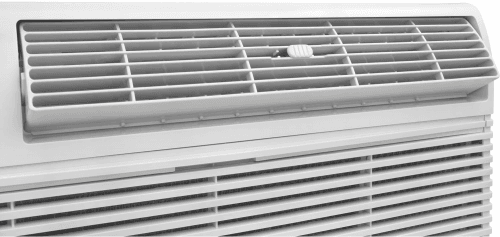

| Air deflection | 4 |
| On-off timer | 24 -hour (adjustable in 0.5-hour increments for the first 10 hours and in 1-hour increments up to 24 hours) |
| Dehumidifier Specs | |
| Dehumidification (L/Hour) | 39.7 |
| Dehumidification (oz/Hour) | 1344.00 |
| Dehumidification (Pints/Hour) | 3.5 |
| Performance | |
| Cool BTU rating | 12000 BTU (It ranges from 11700 to 12000) |
| Heat BTU rating | 10600 (It can drop up to 8600 depending on the settings) |
| Maximum temperature (C) | 32 |
| Minimum temperature (C) | 16 |
| Estimated cool area | 550 Square feet. |
| Cooling fan speeds | 3 |
| Air fan speeds | 3 |
| Minimum temperature | 60 °F (16°C) (55 degrees F in heat mode) |
| Maximum temperature | 90 °F (32°C) (80 degrees F in heat mode) |
| Peak horsepower | 1.79 HP |
| Air flow | 286CFM (8.10 cubic metre/min.) (264 CFM at medium fan speed and 240 CFM at low fan speed) |
| Amps | 5.5 (5.5 to 5.9 amps) |
| Voltage | 230 (208/230) (60Hz) |
| Watts | 1260 W (1230 to 1260 watts in cool mode and 2800 to 3450 watts in heat mode) |
| Max. motor RPM | 1460 RPM (1330RPM at medium fan speed) |
| Min. motor RPM | 1180 RPM |
| Min. noise level | 56.5 |
| Max. noise level | 60.5 (59.1dB at medium fan speed) |
| Convenience | |

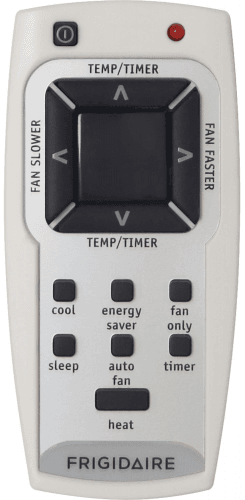

| Remote control | Full-function with an LCD screen |
| Control Location | Top left |
| Air discharge type | Top |
| Auto restart | |
| Other Specs & Features | |

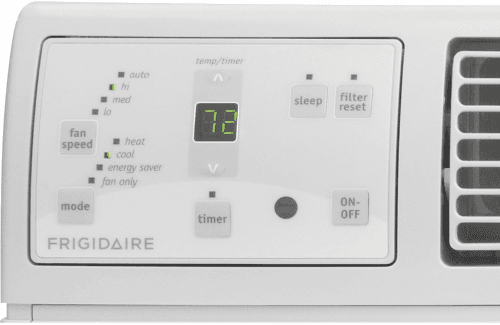

| Button type | Soft-touch |
| Display details | Temperature |
| Indicator lights | (Fan speed, Mode, Check filter, Timer) |
| Preset programs |
|
| Thermostat | |
| Release year | 2015 |
| Air filter details |
|
| Refrigerant | R410A |
| Special Included Accessories |
|
| Available colors | White |
| Display Type | Numeric LCD |
| Power plug type | LCDI 6-20P |
| Special | 18-inch maximum wall thickness |
Description:
Also known as: Frigidaire 12000-BTU Through-the-Wall Air Conditioner.
