Complete Troy-Bilt Vortex 2490 Snow Blower Specs
24
-inch
intake width
Are You Sure It Is Your Best Choice? Check These:
| Basics | |
|---|---|
| Main sub-category | 3-stage snow blower |
| Intake Specs | |
| Intake dimensions | 24-inch wide x 21-inch deep (height) |
| Blower type | Three-stage |
| Auger Style | Serrated |
| Auger Diameter | 12" |
| Auger details | Labeled as Xtreme augers |
| Spare shear pins | 2 |

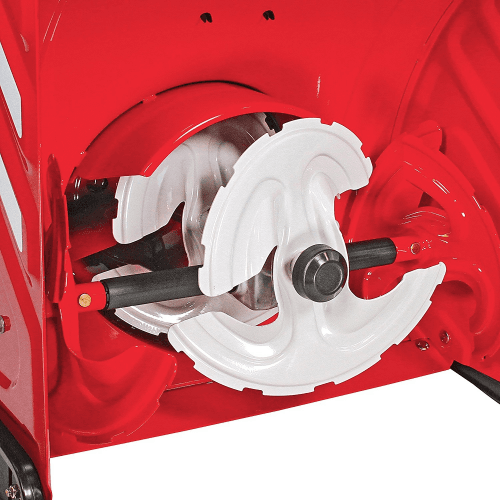

| Impeller Diameter | 12" |
| Skid Shoes | Polymer (deluxe, reversible) |
| Performance | |

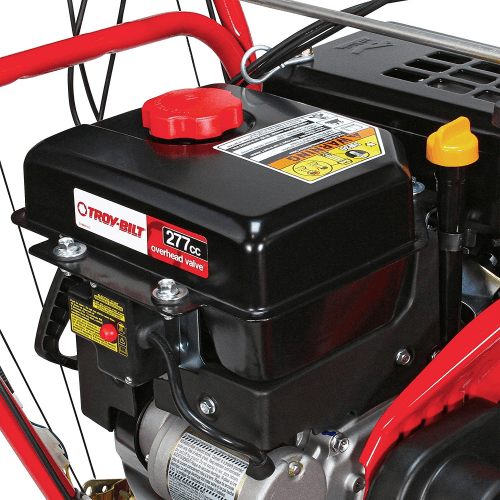

| Engine Make | Troy-Bilt |
| Engine Type | OHV (4-cycle) |
| Cylinder displacement | 277 cc |
| Engine fuel | Gasoline |
| Fuel Tank Capacity | 1.32 gal. (Or 5L / 5 qts.) |
| Starter type | Push-button or recoil |
| Chute / Deflector | |
| Chute Deflector Direction Change | Four-way joystick |
| Chute Material | Polymer (It is described to be resistant to impacts and clogs) |
| Chute Rotation | 200 ° |
| Propulsion & Control | |
| Forward Speeds | 6 |
| Reverse Speeds | 2 |
| Drive system type | All-wheel |
| Power steering | Touch 'n Turn |
| Tire Size | 15 x 5 inches |
| Tread | X-Trac |
| Hand Warmers |  |
| Control Type | One-hand (Troy-Bilt calls theirs Just One Hand) |
| Headlight | |
| Other Specs & Features | |
| Optional Accessories | Drift cutter |
| Special |
|
| Special Included Accessories | Clean-out tool |
| Accelerator Diameter | 12 |
| Warranty | 2 years (The auger gearbox is covered for five years) |
| Release year | 2014 |
| Release month | 05 |
| Release day | 29 |
| Release quarter | 02 |
| SERIES | 500 Series |
| Weight lbs with package | 215 |
| Physical Specs | |
| Width (inches) | 26.75 |
| Height (inches) | 32.5 |
| Depth (inches) | 48.25 |
| Width (mm) | 679.5 |
| Height (mm) | 825.5 |
| Depth (mm) | 1225.6 |
Description:
Also known as: Troy-Bilt 24" Three-Stage Snow Thrower, Troy-Bilt 31AH54Q6766.
