49 Important Bosch SHS863WD6N Dishwasher Specs

place settings
Noise Level
annual cost
Avg. rating:
(96%) (42 reviews over 2 sources)

You Should Also Check Out:
Key Specs
Max. noise level (decibels)44
Number of place settings16

Energy Efficiency ClassTier 1
ENERGY STAR rating269
ENERGY STAR annual cost33
Dishwashing System
Cycle optionsExtra dry, Half load, Intensive Zone, Sanitation
DispenserDetergent tray
Drying featuresInherent heat
Sanitizing wash
Total annual water consumption623.5 gal. (2,360.20L)
Water consumption per wash3.5 gal. (13.25L)
Control Panel
Top controls
Button typePhysical
Display TypeLED
Longest cycle time135 minutes
Shortest cycle time60 minutes
Preset programs1 Hour US, Auto US, Power Scrub Plus US, Regular US, Rinse & Hold US
Programmable start time24-hour delay
Flip tines in lower rackFlexSpace tines
Adjustable upper rackRackMatic (Three height levels for nine possible rack positions)
3rd Rack detailsV-shaped with silverware tines
Silverware Basket detailsMay be split into two pieces and placed anywhere
Rack ColorGrey
Physical Specs
Load Sensor (It automates wash temperature)
Available colorsBlack, Silver, White
Door StyleSelf-latching
Width (inches)23.5
Depth (inches)23.75
Width (mm)598
Height (mm)860
Depth (mm)603.3
Handle TypeScoop
Height (inches)33.9
Tub materialStainless steel
Other Specs & Features
Leak Protection SystemAquaStop
Main categoryQuiet dishwasher
User manualClick here
Model VariantsSHS863WD5N (Silver), SHS863WD2N (White)
Release month04
Release year2017
Concealed heating element
Warranty1 year
Watts1300 (12A)
UPC code825225922049
Indicator lightsInfoLight (This indicates if the washer is running)

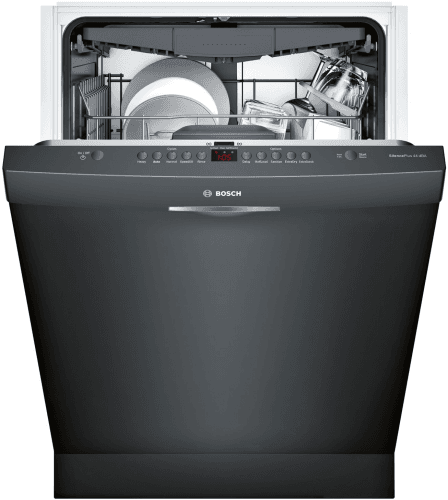

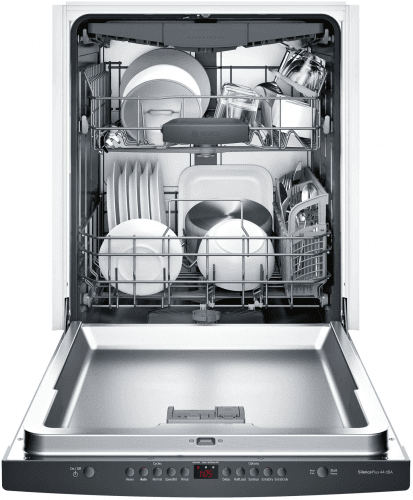

Also known as Bosch 300 Series SHS863WD6N, the SHS863WD6N features a V-shaped third rack with tines for utensils, as well as a silverware basket that can be split into two smaller parts, while it has a max noise level of 44dBA, which sits in between the noise ratings of the most quiet model and the average dishwasher as of this writing. That being said, it shows off a high-power image courtesy of its 1300-watt rating, but is unable to produce a cycle that takes faster than an hour.

Also known as Bosch 300 Series SHS863WD6N.
