Detailed Samsung DW80H9930US Dishwasher Specs

place settings
Noise Level
Our Score: 44%

You Should Also Check Out: Top 10 Best Quiet Dishwashers 2022
Key Specs
Max. noise level (decibels)44 dBa
Number of place settings15

ENERGY STAR rating258 Kwh/year ($31 per year)
Eco featuresHalf Load wash
Dishwashing System
Cycle optionsHalf Load Wash (Lower rack only)
Wash Arms2 (Upper, Middle)
Wash system featuresWaterWall
Built-in water filter3-Filter System
Drying featuresFan-assisted condense drying (Mix-air condensing)
Sanitizing washAnti-bacterial-NSF
SensorsDigital leakage, Water Fill, Overflow, Turbidity Clean
Total annual water consumptionNot specified, but 3 gallons per cycle is mentioned.
Control Panel
Top controls
Control panel featuresCancel & Drain, Start
Button typeElectronic touch sensor
Preset programsDelicate-China/Gentle Cycle, Heavy Cycle, Normal Cycle, Quick Plus Cycle, Smart Auto Wash Cycle
Programmable start time
Lower Rack details12-inch vertical loading limit
Flip tines in lower rack1 pair (3-step)
Upper Rack detailsFlat with 2 cup clips and 2 cup shelves, Basket handle
Adjustable upper rackOne-touch trigger (2-inch-adjustable)
Flip tines in upper rack1 pair (3-step)
3rd Rack detailsFlexTray
Silverware Basket details2-piece
Physical Specs
Load SensorTurbidity Clean
Available colorsSilver (Stainless Steel)
Door StyleTrue Hold
FinishStainless steel
Maximum Height (inches)33.875
Width (inches)24
Depth (inches)24.66 (without the handle), 27 (with the handle)
Width (mm)609.6
Height (mm)860.4
Depth (mm)626.4
Height (inches)33.875
Tub materialStainless steel
Other Specs & Features
Leak Protection SystemDigital Leakage sensor, Overflow sensor
Main categoryQuiet dishwasher
User manualClick here
Approval certificatesNSF, UL/CSA, FTC, CEC
Release day16
Release month2
Release year2015
Security featuresChild lock
Warranty1 year (1 year with parts and labor, 5 years for the circuit board and interior racking, and lifetime warranty on the tub and lining)
Watts30 (Drain pump), 60~100 (Circulation motor), 1100 (Heater)
Indicator lightsIce Blue (VFD)

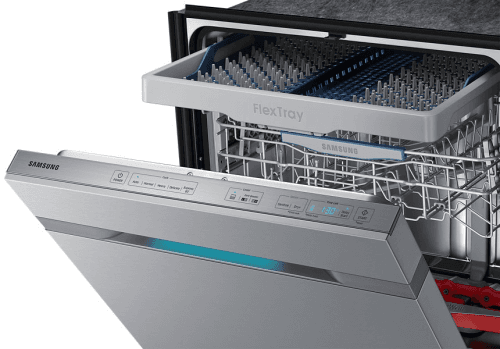

The Samsung DW80H9930US is equipped with the FlexTray third rack, designed to hold any-size cutlery and utensils (a feature that can also be seen in most mid-range to high-end dishwashers), and it banks on the WaterWall wash system, Samsung's attempt to eliminate pre-rinsing by shooting a back-and-forth-moving wall of high-pressure water jets. It also has the bottom-rack-only Half Load wash option, which apparently uses half the amount of water needed per load to reduce water and energy consumption (this feature can also be seen in a handful of dishwashers).
