Most-complete Viking FDW301 Dishwasher Specs

place settings
Key Specs
Number of place settings14

ENERGY STAR rating214 kWh/year ($26 per year)
Eco featuresFast Wash/Eco Wash
Dishwashing System
Cycle optionsHalf Load

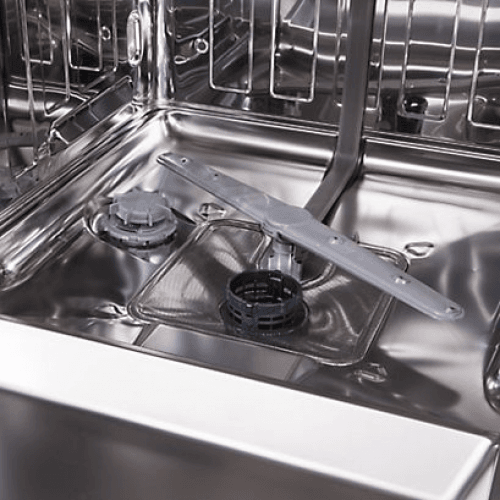

Wash Arms3
Built-in water filterThree-stage
Drying featuresTurbo fan dry
Sanitizing washNSF-certified
Variable spray pressure
Max. water heater temp F120
Control Panel
Top controls
Control panel featuresLCD screen
Shortest cycle time34 minutes (Fast Wash)
Preset programsFast Wash/Eco Wash, Light/China, Pots/Pans, Pots/Pans Plus, Rinse/Hold, Normal Wash
Programmable start time9.5 (30-minute to 9.5-hour delay)

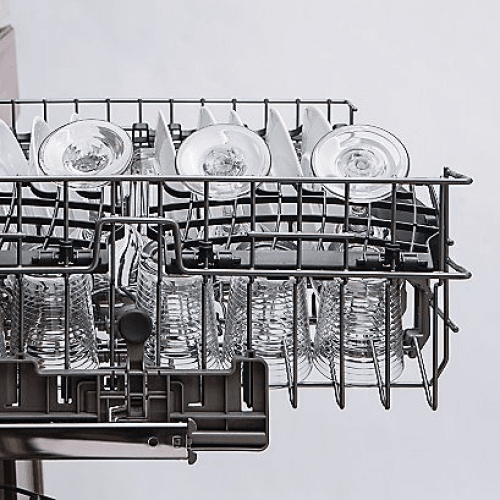

Lower Rack detailsSix foldable tines (Split)
Adjustable upper rack
3rd Rack detailsSmart Size
Silverware Basket detailsSliding
Physical Specs
Inlet hose length2.95in.
Load SensorTurbidity
Available colorsCustom panel-ready, or you may purchase Viking door panels that are available in Silver (Stainless steel), Black, White, Apple Red, Burgundy, Cobalt Blue, and Graphite Gray.
Door InsulationThree layers (Bitumen, cotton and full side walls)
Door StyleCustom panel-ready
FinishCustom panel-ready
Maximum Width (inches)24
Maximum Height (inches)36
Maximum Depth (inches)24
Weight lbs with package97
Width (inches)23.562
Depth (inches)22.187
Width (mm)598.5
Height (mm)911.2
Depth (mm)563.5
Height (inches)35.875
Tub materialStainless steel
Other Specs & Features
Main categoryPanel-ready dishwasher
User manualClick here
Sanitized indicator light
Release day1
Release month7
Release year2015
Interior lightLED
SpecialFloor Indicator Light
Concealed heating element
Warranty1 year (1 year with parts and labor, 5 years on certain components, and a lifetime warranty on the door liner and tub)
Watts1240 (Water heater)
Indicator lights


The FDW301, by Viking, can be outfitted with Viking door panels, which are available in Silver (Stainless steel), Black, White, Apple Red, Burgundy, Cobalt Blue, and Graphite Gray, and it might consume less power, as it seizes a well-below-average 214 kWh/year Energy Star score. Also, it illuminates its interior with LED lights, a feature that is quite-rare among panel-ready dishwashers.
