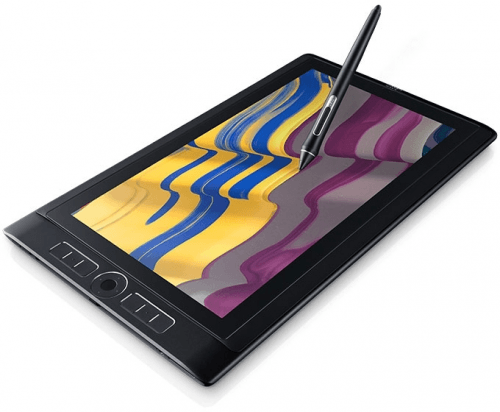

Detailed Wacom MobileStudio Pro 13 i7 512GB Tablet Specs

Main Camera
Avg. rating:
(79%) (424 reviews over 5 sources)

You Should Also Check Out: Top 10 Best Graphics Tablets 2021
Main categoryGraphics tablet
Release year2016
Release month10

General Specs
Wi-Fi802.11 ac
3D graphics
Special features
  • Intel RealSense R200 3D scanning camera
  • 40 degrees tilt range for the stylus
  • 8192 pressure levels for both the pen tip and eraser
  • Detachable Wacom stand with three angles
  • Precision mode
  • Pressure-sensitive, cordless, and battery‑free pen
  • Patented electromagnetic resonance method technology on the Wacom Pro Pen 2
SERIESMobileStudio Pro
Display Size13.3in.
Display contrast800:1
Display features
  • Uses industry standard presets, such as Adobe RGB, 6500 degrees Kelvin white point default, DCI, REC 709, and SRGB
  • LED
Color Mode16700000 (96 percent of Adobe RGB)
Display Resolution2560 x 1440
Display total pixels3686400 pixels
Display brightness150
Display's superficy (in square inches)75.57 square inches
Display's superficy (in square mm)1919.48 square mm
Dots per inch220.88 dots per inch
Camera Specs
Additional Camera5-megapixel
Physical Features
Headset Jack3.5mm (audio/combo)
Available colorsBlack
Special Included AccessoriesWacom Pro Pen 2, Three extra pen nibs (two standard, one felt), Pen carrying case, AC adaptor, Power cable, Color rings, Nib removal tool, Pen holder, Cleaning cloth
FinishMatte black
Weight (grams)1320 grams
Width (inches)9
Height (inches)14.4
Depth (inches)0.6
Width (mm)229
Height (mm)367
Depth (mm)16
Operating SystemWindows 10 Pro
Processor6th generation Intel Core i7
Graphic processorIntel Iris Graphics 550
Memory512GB SSD
Memory ExpansionSDXC card (uhs-ii), External HDD
Battery Specs
Battery power (Wh)52 Wh
Battery charging time120 minutes
Stand-by Time2.1 weeks (Equivalent to 15.0 days or 360.0 hours)
Talk time6.0 hours (360.0 minutes)
Music Playback Time6.0 hours (360.0 minutes)
3G Talk Time360.0 minutes
Usage time360 minutes
ConnectorsUSB type C (Three ports), Headset jack (for both audio and combo use)
Bluetooth Technology4.1
Music / Audio
Speaker power1.5 W (each)
Other Specs & Features
CertificationsVCCI Class B, FCC Part 15, Subpart B (class B) and C, CE, KC, BSMI, C‑tick, CB, CCC, EAC, China RoHS, Korean RoHS, EU RoHS, SII, NOM, CEL, IC, Energy Star, CEC‑BCS, Energy Label Law
Security featuresKensington Security Slot

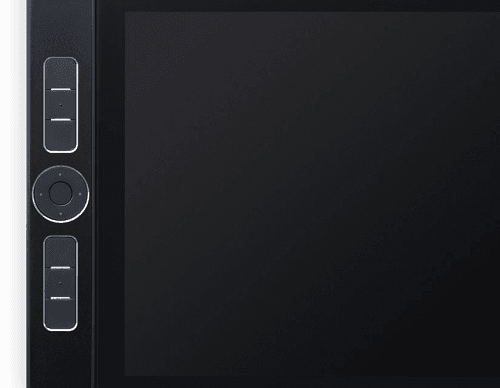

Special keysExpressKeys, Home button, Radial menu, Touch ring, Two side switches on the stylus
Warranty1 year


This tablet computer (AKA Wacom DTHW1320H) has a lower (but not necessarily unimpressive) 2560 x 1440 screen on its facade compared to the DTH-W1620H's 3840 x 2160 display, while it is, despite being 40 percent lighter than the Mobile Studio Pro 16 models, still a literal heavyweight at 1320 grams, which makes it almost twice as heavy as other 13-inch tablets. It also seems poised to tackle heavy-duty tasks as its 16GB RAM, which works hand-in-hand with a sixth-generation Intel i7 processor, is among the highest we have seen as of January 2017.

Also known as Wacom DTHW1320H.
