Most-complete Wacom MobileStudio Pro 16 i5 Tablet Specs

Main Camera
Avg. rating:
(76%) (214 reviews over 2 sources)

You Should Also Check Out: Top 10 Best Graphics Tablets 2021
Main categoryGraphics tablet
Release year2016
Release month10

General Specs
Wi-Fi802.11 ac
Special features
  • 40-degree pen tilt range
  • 60-level pen tilt recognition
  • 8192 pressure levels for both pen tip and eraser
  • Patented electromagnetic resonance method
  • Precision mode
  • Dedicated on-screen controls for brush size, pan, scroll, and zoom
Display Size15.6in.
Display contrast800:1
Color Mode16700000 (94 percent of Adobe RGB)
Display Resolution3840 x 2160
Display finishGlossy
Display total pixels8294400 pixels
Display brightness150
Display's superficy (in square inches)104.04 square inches
Display's superficy (in square mm)2642.62 square mm
Dots per inch282.35 dots per inch
Camera Specs
Additional Camera5-megapixel
Physical Features
Headset Jack3.5mm
Available colorsBlack
Special Included Accessories
  • Wacom Pro Pen 2
  • Cleaning cloth, Three extra pen nibs (2 standard, 1 felt)
  • Pen carrying case
  • AC power adapter
  • Power cable
FinishMatte black
Weight (grams)2020 grams
Width (inches)16.5
Height (inches)10.3
Depth (inches)0.75
Width (mm)418
Height (mm)262
Depth (mm)19
Operating SystemWindows 10 Pro
Processor6th-generation Intel Core i5
Graphic processorNVIDIA Quadro M600M 2GB GDDR5
Memory256GB SSD
Memory ExpansionSDXC card (uhs-ii), External HDD
Battery Specs
BatteryLi-polymer (7.6V)
Battery power (Wh)70 Wh
Battery Power96W
Battery charging time120 minutes
Stand-by Time2.1 weeks (Equivalent to 15.0 days or 360.0 hours)
Talk time6.0 hours (360.0 minutes)
Music Playback Time6.0 hours (360.0 minutes)
3G Talk Time360.0 minutes
Usage time360 minutes
ConnectorsUSB type C (Three ports), Headset jack (for both audio and/or combo)
Bluetooth Technology4.1
TV out (when attached to Mac or PC using optional Wacom Link and USB type-C)
Music / Audio
Speaker power1.5 W (each)
Other Specs & Features
PC data synchronization (with PC and Mac via the optional Wacom Link with USB type C, Mini DisplayPort, and USB type A cables)
CertificationsVCCI Class B, FCC Part 15, Subpart B (class B) and C, CE, KC, BSMI, C‑tick, CB, CCC, EAC, China RoHS, Korean RoHS, EU RoHS, SII, NOM, CEL, IC, Energy Star, CEC‑BCS, Energy Label Law
Security featuresKensington Security Slot

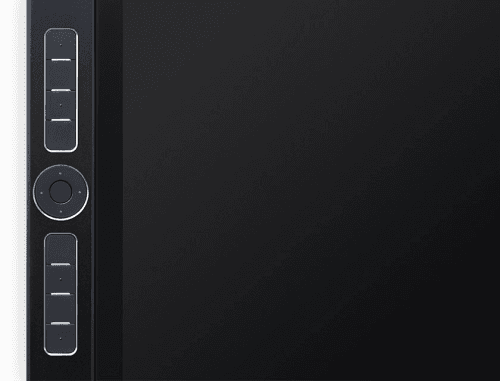

Special keysTwo side switches on the pen, Expresskeys (8 customizable application-specific buttons), Home button, Radial menu, Touch ring
Warranty1 year


The Wacom DTH-W1620M (MobileStudio Pro 16 i5) provides an ultra-HD 3840 x 2160 display with a 16K color mode, both of which considerably augment its large display size of 15.6 inches, and it caters to graphic artists with ExpressKeys, which is a set of customizable and application-specific control buttons, dedicated on-screen controls (for zooming, changing brush sizes, etc.), and shortcut keys. Also, it depends on a 6th-generation Intel Core i5 processor and 8GB DDR3 of RAM (which may not be the best in the category, but is still nonetheless impressive) to run its Windows 10 Pro-based programs.

Also called Wacom DTH-W1620M.
